SOLVENT FREE PARTS WASHERS

  • Environmentally friendly
  • No solvents
  • Biodegradable detergents
  • Does the cleaning for you
  • Saves time
  • Excellent payback
  • Over 23 years in business
  • Knowledge staff

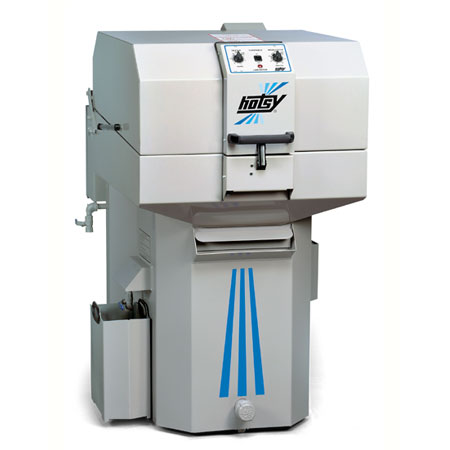

HOTSY 7230 Top Loading

WORKING SPECIFICATIONS

  • Dim L/W/H (in.) : 44 X 34 X 50
  • Volts/ph : 230 V / 1 PH
  • Load Weight : 500 LBS
  • Load Height : 16 Inches
  • Shipping Weight : 400 LBS
  • Amps : 7.2
  • Water Heater : 4.5 kW
  • ump Capacity : 20 Imp GAL
  • Pump Capacity : 23 Imp GPM, 30 PSI
  • Pump Motor : 1 HP
  • Turntable Diameter : 22" includes 4" liftoff containment ring
  • Turntable Drive : AC gear motor; chain, torque limiter
  • Wash Cycle Timer : 60 MIN
  • Heater Timer : 12 Hour





HOTSY 7530 Front loading

WORKING SPECIFICATIONS

  • Dim L/W/H (in.) : 49 X 43 X 70
  • Volts/ph : 230 V / 1PH
  • Load Weight : 750 lbs
  • Load Height : 32 inches
  • Amps : 38
  • Water Temperature : Up to 170 degrees F.
  • Water Heater : 6 kW
  • Sump Capacity : 40 Imp Gal
  • Pump Capacity : 40 Imp GPM; 45 PSI
  • Pump Motor : 3.45 HP
  • Turntable Diameter : 26 inches
  • Turntable Drive : Chain Drive
  • Wash Cycle Timer : 0-60 minutes with hold
  • Heater Timer : 12 hour
  • Number of Nozzles : 12
  • Nozzle Orifice : 1/8 inch
  • Approximate Weight : 745 lbs
